Item # 9658105010

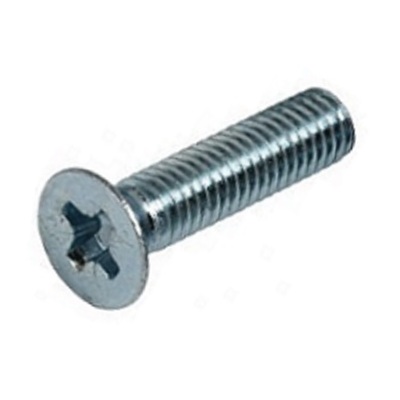

M 5-0.8 x 10 Philips Flat Machine Screw, Class 4.8 Zinc.
- UM: C
- Weight: 0.0036
- Brand: VOLKSWAGEN
- DIN 965, ISO 7046-1, CSN 021156, UNI 7689, VW N14-216-1 N142161
- Phil Flat Head Machine Screws are used for applications including Construction, Industrial and Commercial. Phillips Flat Machine Screws are designed for pre-tapped countersunk hole or nut assembly to form a mating thread.
Specifications
| Diameter | M 5 |
| Thread Pitch | 0.8 |
| Length | 10mm |
| Head Wd. | 9.2mm |
| Head Ht. | 2.5mm |
| Drive Size | # 2 |
| Thread Len. | Full Thread |
×
