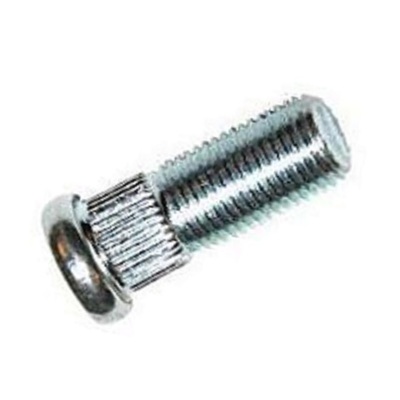

Click image to enlarge
Item # RL99910060
M10-1.25 x 60 Rib Neck Strut Press In Stud CL 10.9 Zinc
- UM: C
- Weight: 0.0810
- Brand: THREE PIECE
- Sportsman 7518671
- Low Profile
- Easy To Mount
- Spline Screw Stud for Shock Extenders/Lifting/Suspensions
- To determine what drill size you need, you will need to know the axle hub material, and the wheel stud knurl diameter. If your axle hub material is cast iron or steel, your drill size will be .127mm smaller than the knurl diameter. If your axle hub material is aluminum, your drill size will be .178mm smaller than the knurl diameter.
- Please check the under head length of your stock stud before ordering.
Specifications
| Diameter | M10 |
| Thread Pitch | 1.25 |
| Length | 60mm |
| Head Wd. | 16mm |
| Head Ht. | 4.1mm |
| Knurl Dia. | 10.4mm |
| Drill Size | 10mm .3937" |
| Knurl Len. | 10mm |
×
