Item # A1232710033

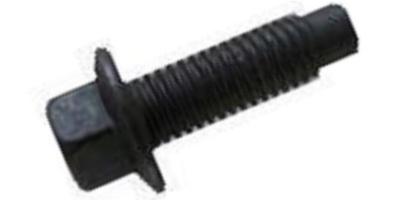

M10-1.50 x 33 Hex Flange Bolt Large O.D., Class 10.9 Phosphate w/Dog Point. IFI 536 / ISO 4162
- UM: C
- Brand: AUVECO
Similar to Auveco 12327
Specifications
| Diameter | M10 |
| Thread Pitch | 1.50 |
| Length | 33mm |
| Head Wd. | 13mm |
| Head Ht. | 9.2mm |
| Flange Dia. | 19.7mm |
| Thread Len. | 28mm |
×
