Item # 98095F05001

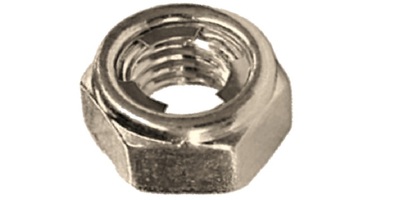

M 5-0.8 FUJI Lock Nut, A2 Stainless Steel. DIN 980M.
- UM: C
- Weight: 0.0026
- Brand: JIS JAPANESE SCREWS
- The Fuji Bearing Locknut or Spring Stop Nut where the locking function is performed by a spring peened into the top of the nut. The nut therefore remains locked in position. This nut works Similar to a nylon insert lock nut, however, using a metal insert instead of nylon makes this nut far superior for anti-vibration applications.
Specifications
| Diameter | M 5 |
| Thread Pitch | 0.8 |
| Head Wd. | 8mm |
| Height | 4.8mm |
×
