Item # 9619510035-1

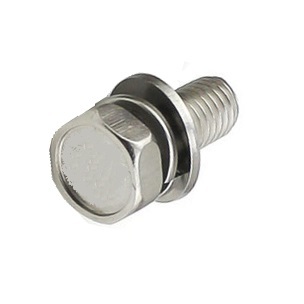

M10-1.25 x 35 Hex Head SEMS Screw w/Flat Washer and SLW, Stainless Steel A2-70 JIS B 1187 B.
- UM: C
- Weight: 0.0676
- Brand: JIS JAPANESE SCREWS
- JIS B 1187 B Split Lock Washer & Flat Washer are Pre-Assembled screws with two free spinning captive washers. Low cost and widely available. Increases productivity by eliminating hand assembly of individual components. Permanent assembly assures that the washer is not dropped, lost or forgotten. Ease of use with hand drivers and in automated production programs.
Specifications
| Diameter | M10 |
| Thread Pitch | 1.25 |
| Length | 35mm |
| Head Wd. | 14mm |
| Head Ht. | 7.3mm |
| Washer Dia. | 22mm |
| Thread Len. | Full Thread |
×
