Item # 9399910085

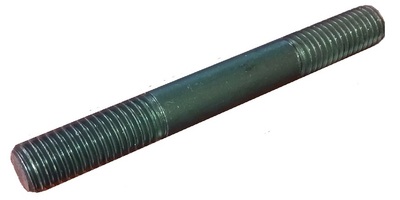

M10-1.50 x 85 Double End Stud, Equal Thread Length, Steel Class 8.8 Plain. (VW Volkswagen Style)
- UM: C
- Weight: 0.0937
- Brand: VOLKSWAGEN
Similar to VW Volkswagen N 014 525 1, N14-525-1, N145251, N 014 525 4, N14-525-4, N14-411-4, N144114, N 014 525 1 VW Lower engine mounting stud. This stud is threaded into the engine case and passes through the lower mounting hole of the Transmission bellhousing. 2 per engine. These can get damaged during engine removal and replacement. Bus to 1975, Bus 76-79 with auto transmission, all other aircooled.
Specifications
| Diameter 1 | M10 |
| Thread Pitch 1 | 1.50 |
| Length 1 | 60mm |
| Diameter 2 | 85mm |
| Thread Pitch 2 | 25mm |
| Length 2 | 25mm |
×
