Item # 9399508030

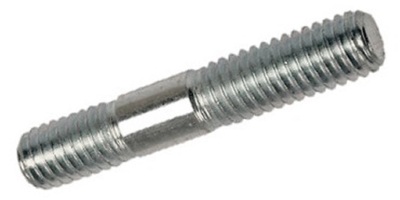

M 8-1.25 x 30 Double End Stud, A2 Stainless Steel. DIN 939
- UM: C
- Weight: 0.0288
- Brand: VOLKSWAGEN
- DIN 939
- Metric Studs are always measured by nominal length (less the short side). See specs for overall length.
- Double End Studs have the threads on each end usually to house a nut on the long side and be driven into the device on the short side. Both ends have chamfered points.
- Metal End = 1.25d
Similar to S8X40DSS
Specifications
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Nominal Len. | 30mm |
| Overall Len. | 40mm |
| Thread Len. 1 | 10mm |
| Thread Len. 2 | 22mm |
×
