Item # 9398010035

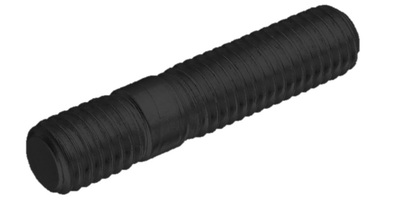

M10-1.50 x 35 Double End Stud, Class 8.8 Plain. DIN 939

Log in for Price

  • Pkg Qty: 900
  • Log in to see if custom discounts apply
9398010035 M10-1.50 x 35 Double End Stud, Class 8.8 Plain. DIN 939
Click image to enlarge
9398010035 M10-1.50 x 35 Double End Stud, Class 8.8 Plain. DIN 939

Item # 9398010035

M10-1.50 x 35 Double End Stud, Class 8.8 Plain. DIN 939

  • UM: C
  • Weight: 0.0526
  • Brand: AUVECO
  • DIN 939
  • Metric Studs are always measured by nominal length (less the short side). See specs for overall length.
  • Double End Studs have the threads on each end usually to house a nut on the long side and be driven into the device on the short side. Both ends have chamfered points.
  • Metal End = 1.25d

Similar to Auveco 11990, Honda 921000-10035, S10X48DBLK

Specifications

Diameter M10
Thread Pitch 1.50
Nominal Len. 35mm
Overall Len. 48mm
Thread Len. 1 12.5mm
Thread Len. 2 26mm
