Item # 91495N06020

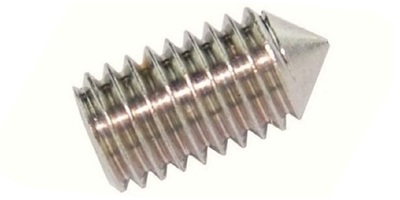

M 6-1.0 x 20 Socket Set Screw, Cone Point, Stainless Steel A2 70 with Patch. DIN 914 / ISO 4027
- UM: C
- Brand: PATCH SCREWS
- DIN 914, ISO 4027, CSN 021191, JIS B 117
- Socket set screws prevent movement of a pulley or Similar machine part relative to a shaft. A cup point set screw has a rounded tip that offers excellent grip while also resisting deforming of the shaft surface. Cone point set screws have a sharp, cone-shaped point that wedges into the contact material thus delivering the strongest torsional and axial holding power.
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Length | 20mm |
| Drive Size | 3mm |
| Thread Len. | Full Thread |
×
