Item # 9028108020

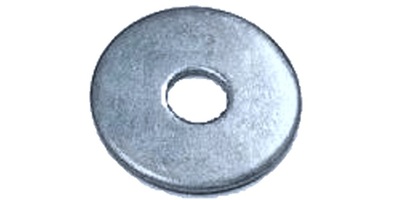

M 8 x 20 Fender Washer, Steel 140 HV Zinc.
- UM: C
- Weight: 0.0217
- Brand: VOLKSWAGEN
- DIN 9021B, ISO 7093, VW N11 525 2W A fender washer, though Similar in shape to a standard washer, differs in that the outside diameter is traditionally much larger in proportion to the center hole. With this design, a fender washer can be placed under the head of a bolt or nut to help distribute forces applied when tightening.
Similar to VW Volkswagen N115252W, N11-525-2W
Specifications
| Screw Dia. | M 8 |
| Inside Dia. | 8.4mm |
| Outside Dia. | 20mm |
| Thickness | 2mm |
×
