Item # 8408106012

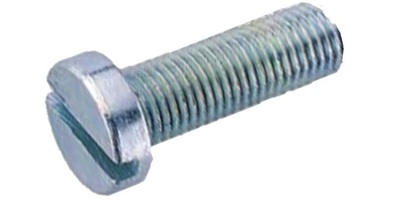

M 6-1.0 x 12 Slotted Cheese Machine Screw, Steel Zinc. DIN 84 / ISO 1207
- UM: C
- Weight: 0.0094
- Brand: VOLKSWAGEN
- DIN 84, ISO 1207, VW ST612 Slotted Cheese head machine screws have a large over sized head and are used to attach metal to metal or metal to wood. Cheese head screws are the preferred head type for counterbored holes. They are Similar to a Pan head machine screw but with greater side height.
Similar to JIS B 1101
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Length | 12mm |
| Head Wd. | 10mm |
| Head Ht. | 3.9mm |
| Thread Len. | Full Thread |
×
