Item # 8358008030

M 8-1.25 x 30 Double End Stud, Class 8.8 Plain. DIN 835

Log in for Price

  • Pkg Qty: 100
  • Case Qty: 500
  • Bulk Qty: 1,600
  • Log in to see if custom discounts apply

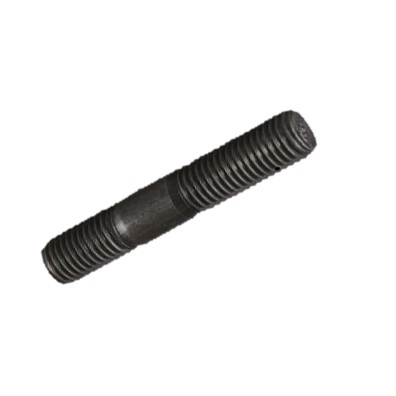

8358008030 M 8-1.25 x 30 Double End Stud, Class 8.8 Plain. DIN 835
Click image to enlarge
8358008030 M 8-1.25 x 30 Double End Stud, Class 8.8 Plain. DIN 835

Item # 8358008030

M 8-1.25 x 30 Double End Stud, Class 8.8 Plain. DIN 835

  • UM: C
  • Weight: 0.0330
  • Brand: VOLKSWAGEN
  • DIN 835 Metric Studs are always measured by nominal length (less the short side). See specs for overall length.
  • Double End Studs have the threads on each end usually to house a nut on the long side and be driven into the device on the short side. Both ends have chamfered points.
  • Metal End = 2d

Similar to CSN 021178

Specifications

Diameter M 8
Thread Pitch 1.25
Nominal Len. 30mm
Overall Len. 46mm
Thread Len. 1 16mm
Thread Len. 2 22mm
