Click image to enlarge
Item # 79911T04010-1

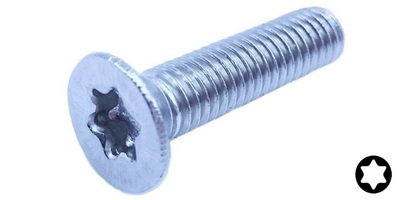

M 4-0.7 x 10 Torx Flat Head Cap Screw, Class 8.8 Zinc. ISO 14581
- UM: C
- Brand: 6 LOBE (TORX) SCREWS
- FULL THREAD
- ISO 14581 A flat Torx cap screw, also known as a flat 6 lobe head cap screw, socket screw or Torx flat socket bolt, is a type of cap screw with a cylindrical head and hexagonal drive hole. Commonly used in machine parts, die fixturing, and clamping. The flat socket head enables driving where there is not sufficient space for wrenches or sockets, and allows the screw head to sit flush with the surface.
Specifications
| Diameter | M 4 |
| Thread Pitch | 0.7 |
| Length | 10mm |
| Head Wd. | 8.4mm |
| Head Ht. | 2.7mm |
| Drive Size | T-20 |
| Thread Len. | Full Thread |
×
