Click image to enlarge
Item # 7991008020

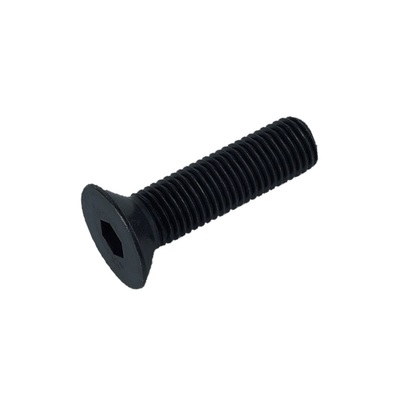

M 8-1.25 x 20 Flat Head Socket Cap Screw, Class 10.9 Plain. DIN 7991 / ISO 10642
- UM: C
- Weight: 0.0195
- Brand: VOLKSWAGEN
- FULL THREAD
- DIN 7991, ISO 10642 A flat socket cap screw, also known as a flat socket head cap screw, socket screw or Allen flat socket bolt, is a type of cap screw with a cylindrical head and hexagonal drive hole. Commonly used in machine parts, die fixturing, and clamping. The flat socket head enables driving where there is not sufficient space for wrenches or sockets, and allows the screw head to sit flush with the surface.
Similar to EMPI 99-1234-0, JIS B 1194
Specifications
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Length | 20mm |
| Head Wd. | 16mm |
| Head Ht. | 4.4mm |
| Drive Size | 5mm |
| Thread Len. | Full Thread |
×
