Item # 7798205001

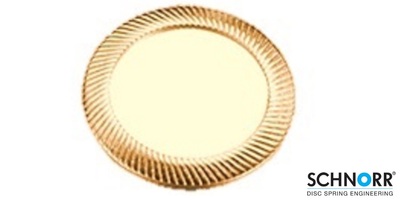

M 5 Schnorr Ribbed Lock Washer, Steel Zinc Yellow

Log in for Price

  • Log in to see if custom discounts apply
7798205001 M 5 Schnorr Ribbed Lock Washer, Steel Zinc Yellow
Click image to enlarge
7798205001 M 5 Schnorr Ribbed Lock Washer, Steel Zinc Yellow

Item # 7798205001

M 5 Schnorr Ribbed Lock Washer, Steel Zinc Yellow

  • UM: C
  • Weight: 0.0001
  • Brand: SHNORR WASHERS
  • The Original SCHNORR safety washer Type S is suitable for normal requirements
  • SCHNORR safety washers are used, for example, in mowing machines, textile machines, machine tools and a lot of other applications. The original SCHNORR safety washers are in the form of a disc spring but with a trapezoidal cross-section and serrations on both sides.
  • Tightening Torque M in Nm 8.8: 7.2, 10.9: 10.5

Similar to BELVILLE, WSH5YLW

Specifications

Screw Dia. M 5
Inside Dia. 5.3mm
Outside Dia. 9mm
Thickness .6mm
Tightening Torque Nm 8.8 Bolts 7.20
Tightening Torque Nm 10.50
