Item # 7500CE1PT02512

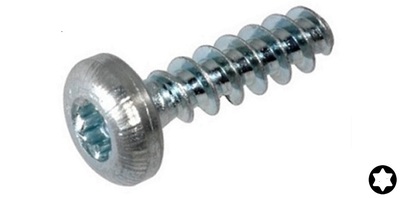

M 2.5 x 12 Torx Pan Head Screw Plastite, Zinc WN 1452
- UM: C
- Weight: 0.0013
- Brand: 6 LOBE (TORX) SCREWS
- WN 1452 Plastite screws are designed to facilitate thread-forming in less-compressible plastics while providing high resistance to strip-out and pull-out. The thread profile allows threads to penetrate deeply into plastic material and generate strong mating threads which resist vibration looosening.
Specifications
| Diameter | M 2.5 |
| Thread Pitch | 0.95 |
| Length | 12mm |
| Head Wd. | 4.25mm |
| Head Ht. | 1.60mm |
| Drive Size | T-8 |
| Thread Len. | Full Thread |
×
