Item # 73805TP04010

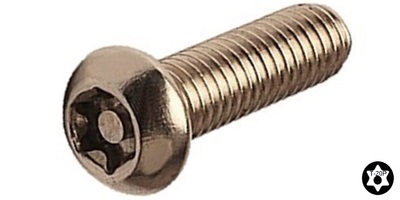

M 4-0.7 x 10 Button Torx Tamperproof Head Cap Screw, A2 Stainless Steel. ISO 7380-1 / JIS B 1174T
- UM: C
- Weight: 0.0271
- Brand: TAMPERPROOF SCREWS
- TAMPERPROOF
- ISO 7380-TP Tamper Proof Fasteners are screws, Nuts and Bolts best characterized by their unconventional drive style. Tamper Proof Fasteners are used in areas where an assembly is accessible to the public, as a means to deter or prevent vandalism or disassembly. Button Torx Screws with a Pin for security provides a clean look while preventing the user from grabbing the screw from the outside.
Similar to SBT4X10SS
Specifications
| Diameter | M 4 |
| Thread Pitch | 0.7 |
| Length | 10mm |
| Head Wd. | 7.6mm |
| Head Ht. | 2.2mm |
| Drive Size | T-20 |
| Thread Len. | Full Thread |
×
