Item # 73805F06012

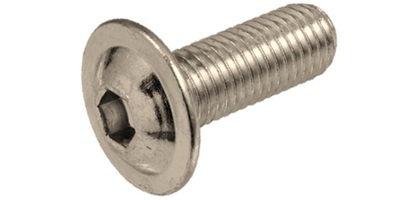

M 6-1.0 x 12 Button Socket Head Cap Screw with Flange, Stainless A2 70. DIN 2671 / ISO 7380-2

Log in for Price

  • Pkg Qty: 100
  • Case Qty: 500
  • Bulk Qty: 5,600
  • Log in to see if custom discounts apply
73805F06012 M 6-1.0 x 12 Button Socket Head Cap Screw with Flange, Stainless A2 70. DIN 2671 / ISO 7380-2
Click image to enlarge
73805F06012 M 6-1.0 x 12 Button Socket Head Cap Screw with Flange, Stainless A2 70. DIN 2671 / ISO 7380-2

Item # 73805F06012

M 6-1.0 x 12 Button Socket Head Cap Screw with Flange, Stainless A2 70. DIN 2671 / ISO 7380-2

  • UM: C
  • Weight: 0.0078
  • Brand: VOLKSWAGEN
  • DIN 2671, ISO 7380-2 Button Socket Cap Screws with Flange are threaded fasteners with a rounded head that have a built in washer. Button Flange Socket Head Screws are often used for the decorative appearance the screw.

Similar to VW N10-710-1, N107101, Empi 4506-11, SBFA6S12SS

Specifications

Diameter M 6
Thread Pitch 1.0
Length 12mm
Flange Dia. 13.85mm
Head Ht. 3.2mm
Drive Size 4mm
Thread Len. Full Thread
