Item # 7380506012

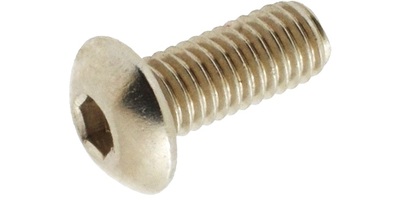

M 6-1.0 x 12 Button Socket Head Cap Screw, Stainless Steel A2 70. ISO 7380
- UM: C
- Weight: 0.0073
- Brand: VOLKSWAGEN
- ISO 7380 Button Head Socket Screws are commonly used in tapped holes and commonly found on automotive applications, electronics, machinery and manufacturing applications. Provides a clean look with no sharp edges to catch onto. The socket driver is ideal for low clearance applications that require a large area clamping face as well as enabling higher torques than a traditional Phillips or slotted drives. A button head socket cap screw's large diameter face also helps to distribute force more evenly.
Similar to EMPI 17-2960-0, JIS B 1174
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Length | 12mm |
| Head Wd. | 10.5mm |
| Head Ht. | 3.3mm |
| Drive Size | 4mm |
| Thread Len. | Full Thread |
×
