Item # 73803F05008

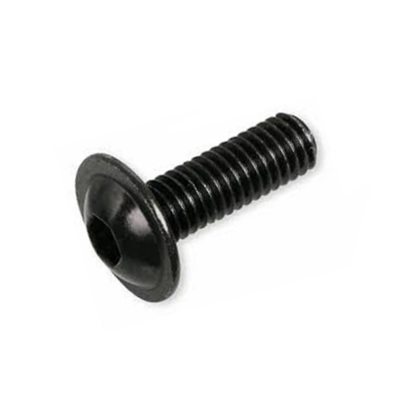

M 5-0.8 x 8 Button Socket Screw with Flange, Class 10.9 Black Zinc DIN 2671 / ISO 7380-2
- UM: C
- Weight: 0.0047
- Brand: FLANGE BOLTS AND SCREWS
- DIN 2671, ISO 7380-2 Button Socket Cap Screws with Flange are threaded fasteners with a rounded head that have a built in washer. Button Flange Socket Head Screws are often used for the decorative appearance the screw.
Similar to SBFA5X8BLK
Specifications
| Diameter | M 5 |
| Thread Pitch | 0.8 |
| Length | 8mm |
| Flange Dia. | 11.8mm |
| Head Ht. | 2.7mm |
| Drive Size | 3mm |
| Thread Len. | Full Thread |
×
