Item # 69KTM06055

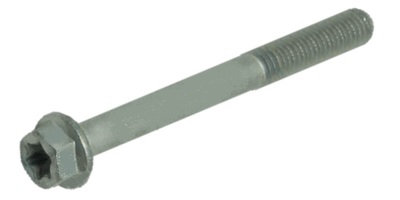

M 6-1.0 x 55 Reduced Head Torx Flange Bolt Class 8.8 Geomet
- UM: C
- Brand: FLANGE BOLTS AND SCREWS
- Partial Thread
- Small Hex Head Flange Bolt with Torx Drive. Typically used on KTM and Husqvarna motorcycles
Similar to KT< 0025060356
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Length | 55mm |
| Head Wd. | 8mm |
| Head Ht. | 5.6mm |
| Flange Dia. | 11mm |
| Drive Size | T30 |
| Thread Len. | Partial Thread |
×
