Click image to enlarge
Item # 6999608060

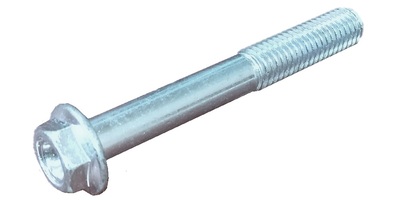

M 8-1.25 x 60 Hex Flange Bolt Small Head, Class 10.9 Zinc.
- UM: C
- Weight: 0.0497
- Brand: FLANGE BOLTS AND SCREWS
- Dished Head
- New Style Honda & KTM Motorcycle Design
- Hex Head Flange Bolt have a flange under the bolt head that acts like a washer to distribute the load. Flange bolts that are usually non-serrated are sometimes called frame bolts.
Similar to Yamaha 90105, 95022-08060-00, Kawasaki 132BA0860 / 132G0860, Suzuki 01547-0860B, MFBZM08X60, S76 8x60
Specifications
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Length | 60mm |
| Head Wd. | 10mm |
| Head Ht. | 5.63mm |
| Flange Dia. | 14.5mm |
| Thread Len. | 28mm |
| Body Dia. | 7.04mm |
×
