Item # 6999608055

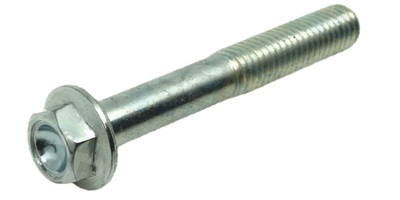

M 8-1.25 x 55 Hex Flange Bolt Small Head, Class 8.8 Zinc.
- UM: C
- Weight: 0.0462
- Brand: FLANGE BOLTS AND SCREWS
- Dished Head
- New Style Honda & KTM Motorcycle Design
- Hex Head Flange Bolt have a flange under the bolt head that acts like a washer to distribute the load. Flange bolts that are usually non-serrated are sometimes called frame bolts.
Similar to Yamaha 90105, 95022-08055-00, Kawasaki 132BA0855 / 132G0855, Suzuki 01547-0855B, MFBZM08X55, S76 8x55
Specifications
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Length | 55mm |
| Head Wd. | 10mm |
| Head Ht. | 5.63mm |
| Flange Dia. | 14.5mm |
| Thread Len. | 28mm |
| Body Dia. | 7.04mm |
×
