Item # 6999608016

M 8-1.25 x 16 Hex Flange Bolt Small Head, Class 10.9 Zinc.

Log in for Price

  • Log in to see if custom discounts apply
6999608016 M 8-1.25 x 16 Hex Flange Bolt Small Head, Class 10.9 Zinc.

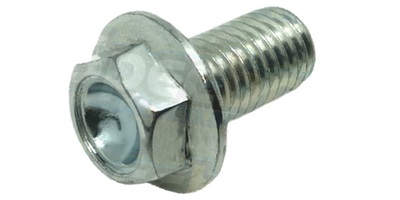

Click image to enlarge
6999608016 M 8-1.25 x 16 Hex Flange Bolt Small Head, Class 10.9 Zinc.

Item # 6999608016

M 8-1.25 x 16 Hex Flange Bolt Small Head, Class 10.9 Zinc.

  • UM: C
  • Weight: 0.0200
  • Brand: FLANGE BOLTS AND SCREWS
  • Dished Head
  • New Style Honda & KTM Motorcycle Design
  • Hex Head Flange Bolt have a flange under the bolt head that acts like a washer to distribute the load. Flange bolts that are usually non-serrated are sometimes called frame bolts.

Similar to Yamaha 90105, 95022-08016-00, Kawasaki 132G0816 / 92066-024 / 132BA0816, Suzuki 01547-0816B, MFBZM08X16, S76 8x16

Specifications

Diameter M 8
Thread Pitch 1.25
Length 16mm
Head Wd. 10mm
Head Ht. 5.63mm
Flange Dia. 14.5mm
Thread Len. Full Thread
Body Dia. 7.04mm
