Item # 6999306025-1

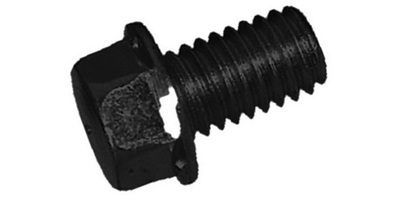

M 6-1.0 x 25 Hex Flange Bolt Small Head, Class 10.9 Everlube 6108 Black.
- UM: C
- Weight: 0.0151
- Brand: FLANGE BOLTS AND SCREWS
- Domed Head
- Old Honda Motorcycle Style
- Hex Head Flange Bolt have a flange under the bolt head that acts like a washer to distribute the load. Flange bolts that are usually non-serrated are sometimes called frame bolts.
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Length | 25mm |
| Head Wd. | 8mm |
| Head Ht. | 5mm |
| Flange Dia. | 10.5mm |
| Thread Len. | Full Thread |
×
