Item # 69991S05012

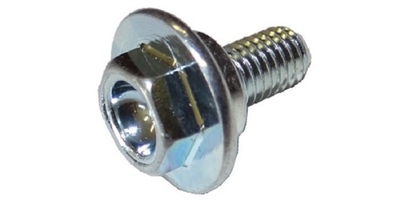

M 5-0.8 x 12 Hex Flange Bolt w/Shoulder Class 8.8 Zinc.
- UM: C
- Brand: FLANGE BOLTS AND SCREWS
Similar to Yamaha 90105, 95022-05012-00, Kawasaki 132BA0512 / 132G0512, Suzuki 01547-0512B, S76 5x12
Specifications
| Diameter | M 5 |
| Thread Pitch | 0.8 |
| Length | 12mm |
| Head Wd. | 8mm |
| Head Ht. | 5mm |
| Flange Dia. | 15mm |
| Shoulder Dia. | Full Thread |
×
