Item # 69281S9032050

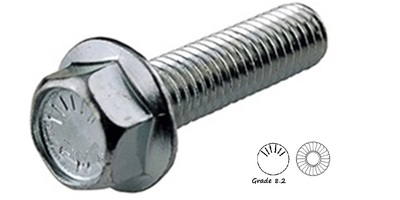

5/16-24 x 1/2" Serrated Hex Flange Bolt, Grade 8.2 Zinc. IFI-111
- UM: C
- Weight: 0.0260
- Brand: VOLKSWAGEN
- IFI-111 VW Cam Gear Bolt
- Hex Head Flange Bolt have a flange under the bolt head that acts like a washer to distribute the load. Serrations provide a true lock and protect against vibration.
Similar to EMPI 21-4310-0, AC109309B, 92323A131
Specifications
| Diameter | 5/16" |
| Thread Pitch | 24 |
| Length | 1/2" |
| Head Wd. | 1/2" |
| Head Ht. | .328" |
| Flange Dia. | .688" |
| Thread Len. | Full Thread |
×
