Item # 69281S12030-1

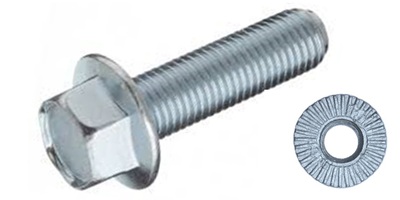

M12-1.75 x 30 Verbus-Ripp Hex Flange Bolt, Class 10.9 Zinc DIN 6921
- UM: C
- Weight: 0.1010
- Brand: FLANGE BOLTS AND SCREWS
- FULL THREAD, VERBUS RIPP LOCKING
- DIN 6921, DIN EN 1665 Hex Head Flange Bolt have a flange under the bolt head that acts like a washer to distribute the load. Locking Serrations grip the surface of the material to provide superior locking power against shock, vibration and other dynamic forces.
Specifications
| Diameter | M12 |
| Thread Pitch | 1.75 |
| Length | 30mm |
| Head Wd. | 16mm |
| Head Ht. | 11.5mm |
| Flange Dia. | 26.6mm |
| Thread Len. | Full Thread |
×
