Item # 69281S10016

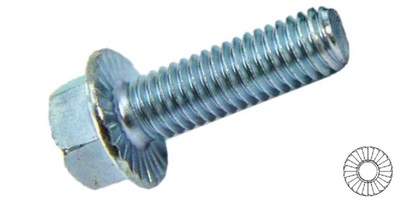

M10-1.50 x 16 Serrated Hex Flange Bolt, Class 8.8 Zinc DIN 6921
- UM: C
- Weight: 0.0511
- Brand: FLANGE BOLTS AND SCREWS
- FULL THREAD
- DIN 6921, DIN EN 1665 Hex Head Flange Bolt have a flange under the bolt head that acts like a washer to distribute the load. Locking Serrations grip the surface of the material to provide superior locking power against shock, vibration and other dynamic forces.
Specifications
| Diameter | M10 |
| Thread Pitch | 1.50 |
| Length | 16mm |
| Head Wd. | 15mm |
| Head Ht. | 9.2mm |
| Flange Dia. | 22.3mm |
| Thread Len. | Full Thread |
×
