Item # 6927910125

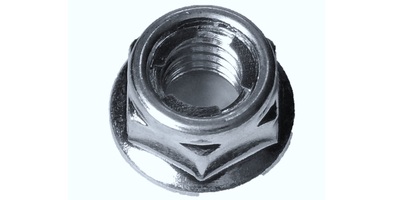

M10-1.25 FUJI Flange Lock Nut, Class 6 Steel Zinc JIS DIN 980M
- UM: C
- Weight: 0.0200
- Brand: JIS JAPANESE SCREWS
- DIN 980M The Fuji Bearing Locknut or Spring Stop Nut where the locking function is performed by a spring peened into the top of the nut. The nut therefore remains locked in position. This nut works Similar to a nylon insert lock nut, however, using a metal insert instead of nylon makes this nut far superior for anti-vibration applications.
Similar to Ducati 74840371AB, Arctic Cat 3303-266, Kawasaki 92015-1335 / 92015-1717 / 92210-1080 / 92210-0276, Motion Pro 300310, Suzuki 08319-31103, NFUJIF10X1.25X14, BN-174, Staytite, , GB 6184
Specifications
| Diameter | M10 |
| Thread Pitch | 1.25 |
| Head Wd. | 14mm |
| Height | 10.0mm |
| Flange Dia. | 18.8mm |
×
