Item # 692393S12001

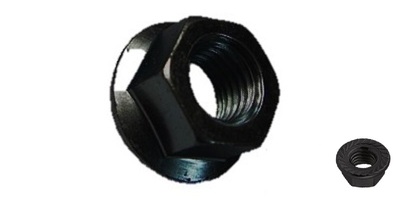

M12-1.75 Hex Flange Nut, with Serrations, Class 10, Steel Black Zinc DIN 6923, ISO 4161
- UM: C
- Weight: 0.0617
- SERRATED
- DIN 6923, ISO 4161 These types of nuts are designed to remove the deficiencies commonly associated with the use of washers and commonly used for high strength automotive applications.
Similar to EN 1661, GB 6177.1
Specifications
| Diameter | M12 |
| Thread Pitch | 1.75 |
| Head Wd. | 18mm |
| Height | 12mm |
| Flange Dia. | 26.0mm |
×
