Item # 692383S08001

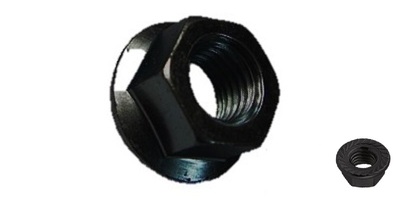

M 8-1.25 Hex Flange Nut, with Serrations, Class 8, Steel Zinc Black DIN 6923, ISO 4161

Log in for Price

  • Pkg Qty: 100
  • Case Qty: 200
  • Bulk Qty: 2,650
  • Log in to see if custom discounts apply
692383S08001 M 8-1.25 Hex Flange Nut, with Serrations, Class 8, Steel Zinc Black DIN 6923, ISO 4161
Click image to enlarge
692383S08001 M 8-1.25 Hex Flange Nut, with Serrations, Class 8, Steel Zinc Black DIN 6923, ISO 4161

Item # 692383S08001

M 8-1.25 Hex Flange Nut, with Serrations, Class 8, Steel Zinc Black DIN 6923, ISO 4161

  • UM: C
  • Weight: 0.0165
  • Brand: VOLKSWAGEN
  • SERRATED
  • DIN 6923, ISO 4161, VW N11-008-3F These types of nuts are designed to remove the deficiencies commonly associated with the use of washers and commonly used for high strength automotive applications.

Similar to VW Volkswagen N110083F, NF8SS, EN 1661, GB 6177.1

Specifications

Diameter M 8
Thread Pitch 1.25
Head Wd. 13mm
Height 8mm
Flange Dia. 17.9mm
