Item # 6921505030

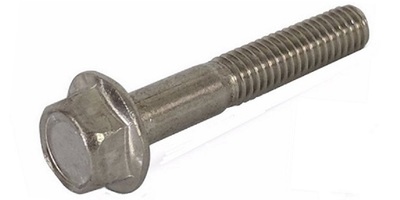

M 5-0.8 x 30 Hex Flange Bolt, Stainless Steel A2 70. DIN 6921
- UM: C
- Weight: 0.0155
- Brand: FLANGE BOLTS AND SCREWS
- DIN 6921, DIN EN 1665
- Hex Head Flange Bolt have a flange under the bolt head that acts like a washer to distribute the load. Flange bolts that are usually non-serrated are sometimes called frame bolts.
Specifications
| Diameter | M 5 |
| Thread Pitch | 0.8 |
| Length | 30mm |
| Head Wd. | 8mm |
| Head Ht. | 5.4mm |
| Flange Dia. | 11.8mm |
| Thread Len. | 16mm |
×
