Item # 6799004001

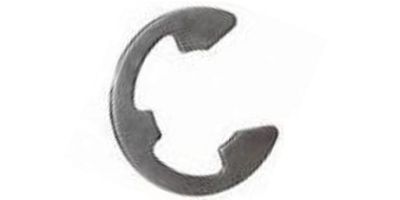

M 4 E-Ring Circular Clip, Steel Plain. DIN 6799
- UM: C
- Weight: 0.0004
- Brand: VOLKSWAGEN
- DIN 6799, VW N12-434-1 Circlip or E-clips are a type of tool used for projects including car engines, speedometer cable and locking mechanisms. They resemble an "E" shape, and they have 1 side with an opening. E-clips are large retaining rings, and retaining rings hold parts onto a shaft when installed into a groove.
Similar to VW Volkswagen N124341, N12-434-2, N124342, N12434-2, Auveco 15818, Kawasaki 482J4000, 482K4000, Seibu Fasteners 895, Mr Metric M60820 Mountz, CASE 800-315, 93399OR1, JIS B 2805
Specifications
| Diameter | M 4 |
| Inside Dia. | 3.34mm |
| Outside Dia. | 9.3mm |
| Thickness | .7mm |
×
