Item # 64885M06001

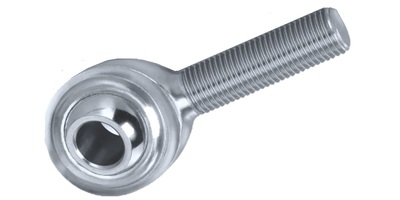

M 6-1.0 Male Spherical Rod End, Steel Housing with PTFE Race. Zinc Plated. Left Hand
- UM: C
- Brand: AUVECO
- LEFT HAND THREAD
- Rod ends are used to connect the ends of control rods, steering links and other tie rods used for mechanical control. A rod end provides an effective point-to-point contact with the center of rotation lying on the axis of both attached shafts.
- Ultimate radial Static Load is 11.48 lbs.
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| CTE | 36mm |
| Head Wd. | 20mm x 6.75mm |
| Inside Dia. | 23.4mm |
| Swivel Angle | 6mm |
| Thread Len. | 24 deg |
| 22mm |
×
