Item # 64881F06001

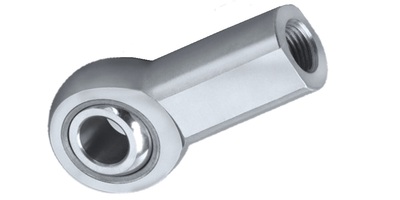

M 6-1.0 Female Spherical Rod End, Steel Housing with PTFE Race. Zinc Plated.
- UM: C
- Brand: AUVECO
- Rod ends are used to connect the ends of control rods, steering links and other tie rods used for mechanical control. A rod end provides an effective point-to-point contact with the center of rotation lying on the axis of both attached shafts.
- Ultimate radial Static Load is 11.48 lbs.
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| CTE | 30mm |
| Head Wd. | 20mm x 9mm |
| Inside Dia. | 6.00mm |
| Swivel Angle | 24 deg |
| Thread Len. | 12mm |
| Wrench | 10mm |
×
