Item # 6335205033-1

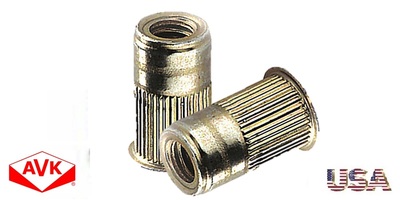

M 5-0.8 Knurled Rivet Nut w/Small Flange, Steel Zinc Yellow
- UM: C
- Weight: 0.0047
- Brand: AUVECO
- AVK AKS4T580-3.3
- Made in USA
- A rivet nut, also known as a blind rivet nut or Rivnut, is a one-piece internally threaded and counterbored tubular rivet that can be anchored entirely from one side. It is a kind of threaded insert. There are two types: one is designed to form a bulge on the back side of the panel as a screw is tightened in its threads. The other is Similarly drawn in using a screw, but is drawn into the sleeve instead of creating a bulge.
Similar to Auveco 12982, Auveco 12983, AVK AKS4-580-3.3, Rivnut, TNF5
Specifications
| Diameter | M 5 |
| Thread Pitch | 0.8 |
| Height | 12.07mm |
| Grip Range | .5mm~3.3mm |
| Flange Dia. | 8.64mm |
| Hole Size | 7.60mm |
×
