Item # 5399010024

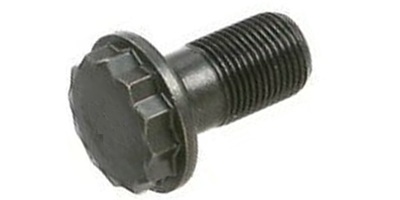

M10-1.25 x 24 Chromoly 4340, Ultra High Strength, Black Phosphate 12 Point Flange Flexplate Bolts
- UM: C
- Brand: THREE PIECE
- MTP BRAND
- 190,000 PSI Tensile Strength, HRC 40-43, SAE AS9104/1 The driver of a 12-point screw uses two overlapped hexagon shapes, creating 12-points and a flanged underside. These are also referred to as ferry cap screws or 12 point flange screws. Advantages : Higher torque, Lack of recess to trap fluid or debris, Tight space,
Specifications
| Diameter | M10 |
| Thread Pitch | 1.25 |
| Length | 24mm |
| Head Wd. | 14mm |
| Head Ht. | 13.2mm |
| Flange Dia. | 18mm |
| Thread Len. | .945" |
×
