Item # 53794PVD08035

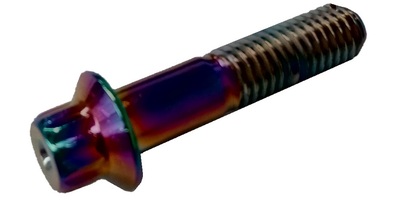

M 8-1.25 x 35 12 Point Flange Screw, Class 10.9 Neochrome PVD.
- UM: C
- Weight: 0.0367
- Brand: THREE PIECE
- Used in the assembly of the Three Piece Wheel
- MTP Brand
- Special Small Flange
Specifications
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Length | 35mm |
| Head Wd. | 8mm |
| Head Ht. | 8mm |
| Flange Dia. | 14mm |
| Thread Len. | 26mm |
| Color | Neochrome |
×
