Item # 53794G07031

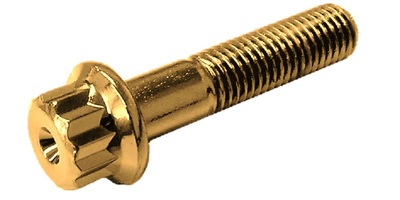

M 7-1.0 x 31 12 Point Flange Screw, Class 10.9 G04 Gold.
- UM: C
- Weight: 0.0290
- Brand: THREE PIECE
- Used in the assembly of the Three Piece Wheel
- MTP Brand
- Special Small Flange
Specifications
| Diameter | M 7 |
| Thread Pitch | 1.0 |
| Length | 31mm |
| Head Wd. | 8mm |
| Head Ht. | 8mm |
| Flange Dia. | 13mm |
| Thread Len. | 22mm |
| Color | Gold |
×
