Click image to enlarge
Item # 5379406030

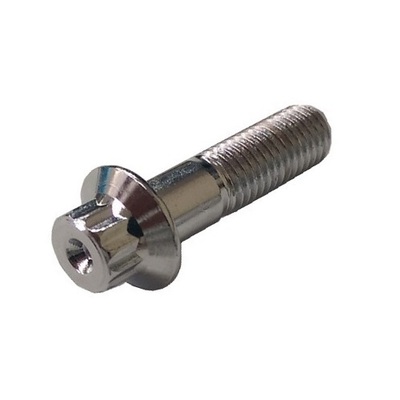

M 6-1.0 x 30 12 Point Flange Screw, Class 10.9 Steel/Chrome.
- UM: C
- Weight: 0.0220
- Brand: THREE PIECE
- MTP BRAND
- Used in the assembly of the Three Piece Wheel
Similar to Bimecc M7-1-31-CR
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Length | 30mm |
| Head Wd. | 8mm |
| Head Ht. | 7.5mm |
| Flange Dia. | 13mm |
| Thread Len. | 18mm |
| Color | Chrome |
×
