Item # 5379308033-1

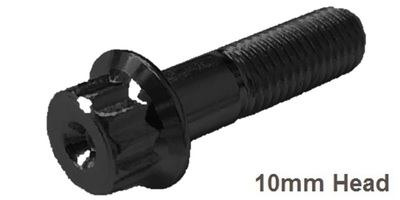

M 8-1.25 x 32 12 Point Flange Screw, Class 10.9 Black Zinc.
- UM: C
- Brand: THREE PIECE
- Used in the assembly of the Three Piece Wheel
- MTP Brand
- Special Large Head
- Special Large Flange
Specifications
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Length | 33mm |
| Head Wd. | 10mm |
| Head Ht. | 8mm |
| Flange Dia. | 15mm |
| Thread Len. | 26mm |
| Color | Black Zinc |
×
