Item # 5379308030

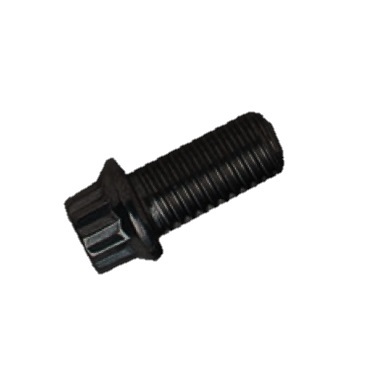

M 8-1.25 x 30 12 Point Flange Screw, Class 12.9 Steel/Black Chrome.
- UM: C
- Brand: CHROME
- The driver of a 12-point screw uses two overlapped hexagon shapes, creating 12-points and a flanged underside. These are also referred to as ferry cap screws or 12 point flange screws. Advantages : Higher torque, Lack of recess to trap fluid or debris, Tight space, Weight saving.
Specifications
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Length | 30mm |
| Head Wd. | 8mm |
| Head Ht. | 8mm |
| Flange Dia. | 13mm |
| Thread Len. | Full Thread |
×
