Item # 1444110126

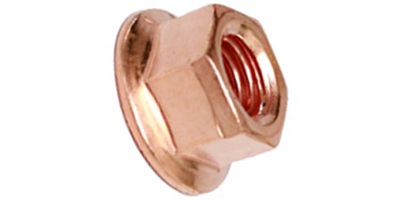

M10-1.25 JIS Hex Flange Nut, Small Hex, with Serrations, Class 10 Copper Plated
- UM: C
- Weight: 0.0165
- Brand: JIS JAPANESE SCREWS
- JIS / JAPANESE STYLE or smaller/space saving (verringerte) version of the DIN 14440
- DIN 14441All Metal Self-Locking Copper Automotive Exhaust Nuts are made from Class 8 or Class 10 material and coated with heavy copper plating to act as anti-galling. Copper plating can be used in temperatures ranges from -70°C to +400°C. Locking mechanism is Similar to DIN 6927 Stover nuts all-metal prevailing torque self-locking nut.
Similar to NCF10X1.25X14. BMW 11621711954, 116-21-711-954
Specifications
| Diameter | M10 |
| Thread Pitch | 1.25 |
| Head Wd. | 14mm |
| Height | 10.3mm |
| Flange Dia. | 21mm |
×
