Item # 11903S06001

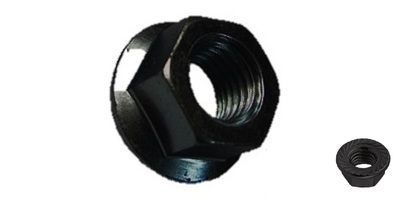

M 6-1.0 Hex Flange Nut with Serrations, Class 8 Black Zinc.
- UM: C
- Weight: 0.0066
- Brand: JIS JAPANESE SCREWS
- SERRATED JIS B 1190 DIN 6923 These types of nuts are designed to remove the deficiencies commonly associated with the use of washers and commonly used for high strength automotive applications.
Similar to Arctic Cat 0423-540, Dorman 431-706 / 878-706, NFF6BLK, EN 1661, GB 6177.1, ISO 4161
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Head Wd. | 10mm |
| Height | 6mm |
| Flange Dia. | 14.2mm |
×
