Item # 11902S08001-1

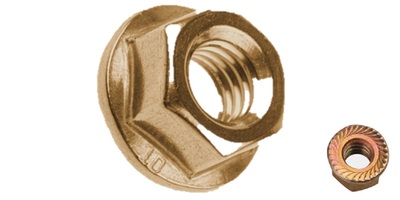

M 8-1.25 JIS Hex Flange Nut, Small O.D., with Serrations, Class 10 Zinc Yellow.
- UM: C
- Weight: 0.0143
- Brand: JIS JAPANESE SCREWS
- SERRATED JIS B 1190 Japanese Industry Standard fasteners have a smaller hex dimension than their more common DIN counterparts and fit those tight spots where the hex of a DIN fastener is too large. JIS. fasteners are often used on import cars. These types of nuts are designed to remove the deficiencies commonly associated with the use of washers and commonly used for high strength automotive applications.
Similar to NFFH8CLZY
Specifications
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Head Wd. | 12mm |
| Height | 8mm |
| Flange Dia. | 17.5mm |
×
