Item # 1189310050-1

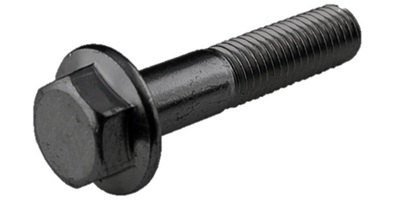

M10-1.50 x 50 Hex Head Flange Bolt, Class 10.9 Black Zinc DIN 6921
- UM: C
- Weight: 0.1034
- Brand: JIS JAPANESE SCREWS
- DIN 6921 Hex Head Flange Bolt.
Specifications
| Diameter | M10 |
| Thread Pitch | 1.50 |
| Length | 50mm |
| Head Wd. | 15mm |
| Head Ht. | 9.2mm |
| Flange Dia. | 22.3mm |
| Thread Len. | 26mm |
×
