Item # 1189114120

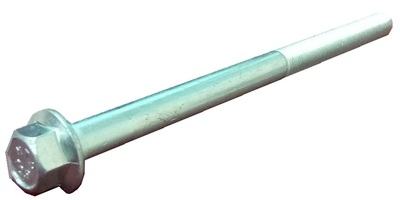

M14-1.50 x 120 Hex Head Flange Bolt Small Head, Class 10.9 Zinc JIS B 1189
- UM: C
- Weight: 0.3600
- Brand: JIS JAPANESE SCREWS
- PARTIAL THREAD JIS B 1189 Type 2 Small Hex Head Flange Bolt. If you are after that original look or just a small head, come no further. Typically used on Nissan, Honda, Toyota and Subaru vehicles as well as Suzuki, Yamaha and Kawasaki motorcycles. Hex Head Flange Bolt have a flange under the bolt head that acts like a washer to distribute the load. Flange bolts that are usually non-serrated are sometimes called frame bolts.
Specifications
| Diameter | M14 |
| Thread Pitch | 1.50 |
| Length | 120mm |
| Head Wd. | 19mm |
| Head Ht. | 13.5mm |
| Flange Dia. | 29mm |
| Thread Len. | 34mm |
×
