Item # 1189008030

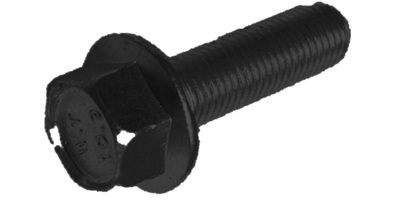

M 8-1.25 x 30 Hex Head Flange Bolt Small Head, Class 10.9 Plain JIS B 1189.
- UM: C
- Weight: 0.0338
- Brand: JIS JAPANESE SCREWS
- JIS B 1189 Type 1 FULL THREAD Small Hex Head Flange Bolt. If you are after that original look or just a small head, come no further. Typically used on Nissan, Honda, Toyota and Subaru vehicles as well as Suzuki, Yamaha and Kawasaki motorcycles. Hex Head Flange Bolt have a flange under the bolt head that acts like a washer to distribute the load. Flange bolts that are usually non-serrated are sometimes called frame bolts.
Similar to Auveco 17389, Arctic Cat 3304-177, 3008-533, 8408-830, Kawasaki 130J0830, 130P0830, 92001-1508, 92001-1951/ 92150-1455, Yamaha 95701-08030-00, Kawasaki 130G0830, 130H0830, Suzuki 130J0830, Polaris 396000-08030-K, Dorman 459-430, 980-430, 980-430D, Honda 95701-08030-00, Yamaha 95701-04010-00, Mazda 9979-61-830, Seibu Fasteners 6185, Mr Metric M30690 Mountz, BF8X30CLZ, JISB1189ZM08X30
Specifications
| Diameter | M 8 |
| Thread Pitch | 1.25 |
| Length | 30mm |
| Head Wd. | 12mm |
| Head Ht. | 8mm |
| Flange Dia. | 17.5mm |
| Thread Len. | Full Thread |
×
