Click image to enlarge
Item # 1188F206016

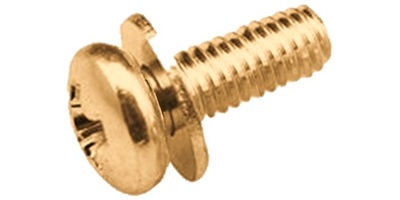

M 6-1.0 x 16 Philips Pan SEMS Screw, Steel Yellow Zinc. JIS B 1188 F
- UM: C
- Brand: JIS JAPANESE SCREWS
- JIS B 1188 F Flat Washer Pre-Assembled screws with one free spinning captive washer.
- Low cost and widely available.
- Increases productivity by eliminating hand assembly of individual components.
- Permanent assembly assures that the washer is not dropped, lost or forgotten.
- Ease of use with hand drivers and in automated production programs.
Specifications
| Diameter | M 6 |
| Thread Pitch | 1.0 |
| Length | 16mm |
| Head Wd. | 10.5mm |
| Head Ht. | 3.9mm |
| Drive Size | # 3 |
| Washer Dia. | 12mm |
| Full Thread |
×
